流程进入到选择判断时，报错

gonnawin

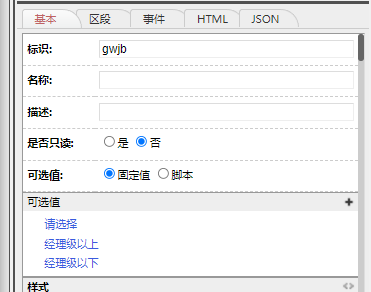

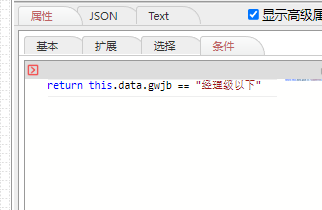

请问我这边在流程进入到选择时，无法进行下一步，并且报错TypeError: Cannot read property "gwjb" from undefined in <eval> at line number 2
请问该怎么解决呢

2022-07-13 16:44:54.199 [ProcessPlatformExecutor-23] ERROR com.x.base.core.project.scripting.JsonScriptingExecutor - id:965d2c6f-b38f-4603-af78-246452e47b30, name:com.x.base.core.project.scripting.JsonScriptingExecutor, message:TypeError: Cannot read property "gwjb" from undefined in <eval> at line number 2, exception:javax.script.ScriptException.
javax.script.ScriptException: TypeError: Cannot read property "gwjb" from undefined in <eval> at line number 2
    at jdk.nashorn.api.scripting.NashornScriptEngine.throwAsScriptException(NashornScriptEngine.java:477) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.api.scripting.NashornScriptEngine.evalImpl(NashornScriptEngine.java:433) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.api.scripting.NashornScriptEngine$3.eval(NashornScriptEngine.java:521) ~[jdk.scripting.nashorn:?]
    at com.x.base.core.project.scripting.JsonScriptingExecutor.jsonElement(JsonScriptingExecutor.java:51) ~[x_base_core_project.jar:?]
    at com.x.base.core.project.scripting.JsonScriptingExecutor.evalBoolean(JsonScriptingExecutor.java:174) ~[x_base_core_project.jar:?]
    at com.x.processplatform.service.processing.processor.choice.ChoiceProcessor.inquiring(ChoiceProcessor.java:63) ~[classes/:?]
    at com.x.processplatform.service.processing.processor.choice.AbstractChoiceProcessor.inquireProcessing(AbstractChoiceProcessor.java:33) ~[classes/:?]
    at com.x.processplatform.service.processing.processor.AbstractProcessor.inquire(AbstractProcessor.java:300) ~[classes/:?]
    at com.x.processplatform.service.processing.Processing.inquire(Processing.java:245) ~[classes/:?]
    at com.x.processplatform.service.processing.Processing.processing(Processing.java:85) ~[classes/:?]
    at com.x.processplatform.service.processing.Processing.processing(Processing.java:40) ~[classes/:?]
    at com.x.processplatform.service.processing.jaxrs.work.ActionProcessing$CallableExecute.call(ActionProcessing.java:99) ~[classes/:?]
    at com.x.processplatform.service.processing.jaxrs.work.ActionProcessing$CallableExecute.call(ActionProcessing.java:88) ~[classes/:?]
    at java.util.concurrent.FutureTask.run(FutureTask.java:264) ~[?:?]
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128) ~[?:?]
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628) ~[?:?]
    at java.lang.Thread.run(Thread.java:834) ~[?:?]
Caused by: jdk.nashorn.internal.runtime.ECMAException: TypeError: Cannot read property "gwjb" from undefined
    at jdk.nashorn.internal.runtime.ECMAErrors.error(ECMAErrors.java:57) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.internal.runtime.ECMAErrors.typeError(ECMAErrors.java:213) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.internal.runtime.ECMAErrors.typeError(ECMAErrors.java:185) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.internal.runtime.ECMAErrors.typeError(ECMAErrors.java:172) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.internal.runtime.Undefined.get(Undefined.java:161) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.internal.scripts.Script$Recompilation$404$\^eval\_/0x0000000102eb7040.o(<eval>:2) ~[?:?]
    at jdk.nashorn.internal.scripts.Script$Recompilation$403$\^eval\_/0x0000000102eb6c40.:program(<eval>:1) ~[?:?]
    at jdk.nashorn.internal.runtime.ScriptFunctionData.invoke(ScriptFunctionData.java:655) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.internal.runtime.ScriptFunction.invoke(ScriptFunction.java:513) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.internal.runtime.ScriptRuntime.apply(ScriptRuntime.java:527) ~[jdk.scripting.nashorn:?]
    at jdk.nashorn.api.scripting.NashornScriptEngine.evalImpl(NashornScriptEngine.java:428) ~[jdk.scripting.nashorn:?]
    ... 15 more
2022-07-13 16:44:54.200 [ProcessPlatformExecutor-23] ERROR com.x.processplatform.service.processing.processor.AbstractProcessor - id:02f44303-1ca8-4721-a4be-330e7e7efa59, name:com.x.processplatform.service.processing.processor.AbstractProcessor, message:inquire return empty routes, exception:java.lang.IllegalStateException.
java.lang.IllegalStateException: inquire return empty routes
    at com.x.processplatform.service.processing.processor.AbstractProcessor.inquire(AbstractProcessor.java:306) ~[classes/:?]
    at com.x.processplatform.service.processing.Processing.inquire(Processing.java:245) ~[classes/:?]
    at com.x.processplatform.service.processing.Processing.processing(Processing.java:85) ~[classes/:?]
    at com.x.processplatform.service.processing.Processing.processing(Processing.java:40) ~[classes/:?]
    at com.x.processplatform.service.processing.jaxrs.work.ActionProcessing$CallableExecute.call(ActionProcessing.java:99) ~[classes/:?]
    at com.x.processplatform.service.processing.jaxrs.work.ActionProcessing$CallableExecute.call(ActionProcessing.java:88) ~[classes/:?]
    at java.util.concurrent.FutureTask.run(FutureTask.java:264) ~[?:?]
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128) ~[?:?]
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628) ~[?:?]
    at java.lang.Thread.run(Thread.java:834) ~[?:?]

论坛管理员

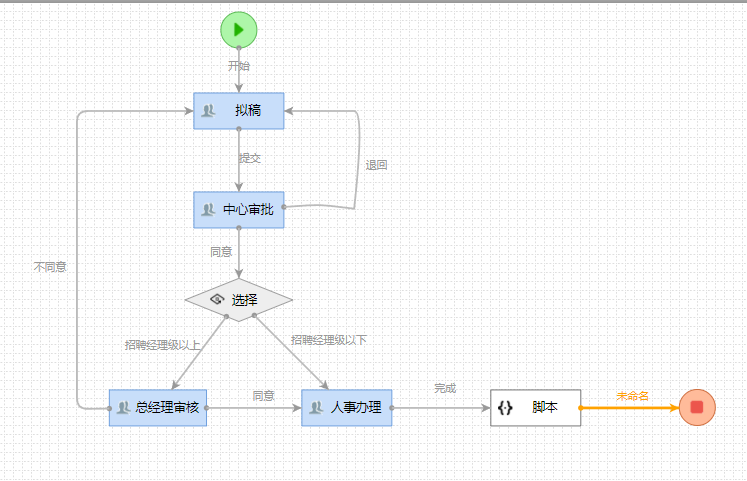

您这条路由怎么画出来的？只有选择节点出来的路由才有条件的，您现在是脚本出来的路由，不应该有这个条件选项的
